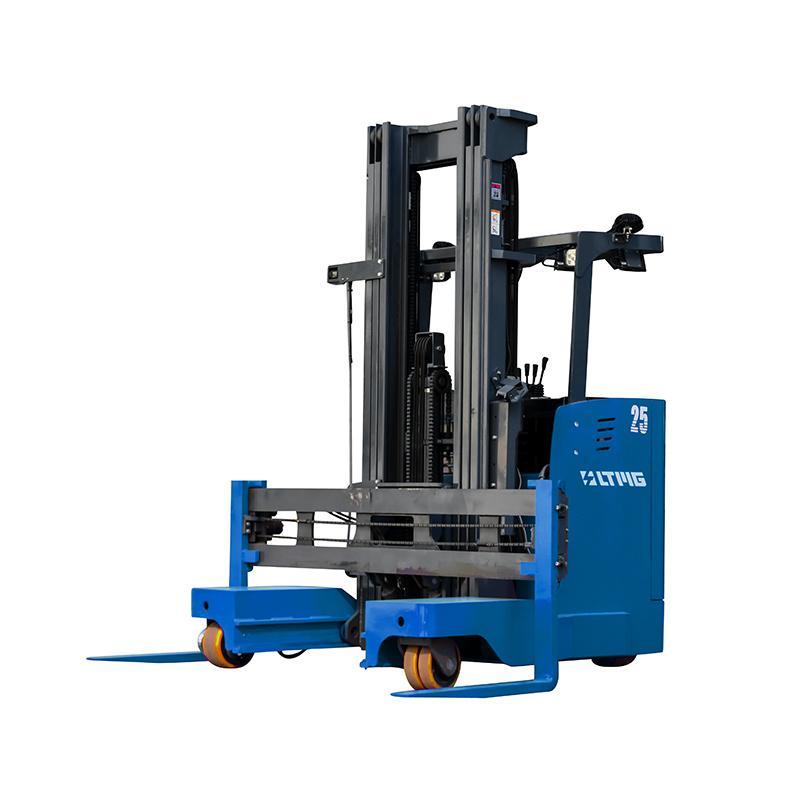

FRB15F/20F/30F - 1.5/2/3 Ton 4-way Electric Reach Forklift
Four way traveling, suitable for narrow aisle stacking operation, especially suitable for long material handling, greatly saving storage area, straight line, side line fast switching, simple operation, rapid direction change, high efficiency, less failure.
U.S.A.CURTIS Curtis electronic control, with multiple automatic protection system, to provide a higher level of functional safety.
Using intelligent high-definition display meter, it can real-time display the information of vehicle running condition and also provide fault display, which is convenient for troubleshooting and maintenance.
Using full AC drive system, the response is more rapid and the control is more accurate, which improves the performance of the whole vehicle.
EPS electronic power steering system, the operation is lighter and more flexible, improve the stability of high-speed driving maneuvering.
The angle of driving wheel is displayed in real time, which is easy to fine-tune the direction in narrow aisle, safe and reasonable, and accurate identification.
Hotline Order:
Mon - Fri: 09AM - 08PM
(+86) 13686469587
Specification
features | Model | FRB15F | FRB20F | FRB30F | |
Operation type | Stand type | ||||
Capacity | Q(kg) | 1500 | 2000 | 3000 | |
Load center | C(mm) | 500 | 500 | 500 | |
Wheelbase | Y(mm) | 1622 | 1722 | 1824 | |
weight | Total weight including the battery | kg | 3400 | 3500 | |
Wheel, chassis | Wheel type | Pu solid tire | |||
Front wheel | Øxw(mm) | Ø267*114 | Ø267*114 | φ285*78 | |
Driving Wheel | Øxw(mm) | Ø382*142 | Ø382*142 | φ382*142 | |
Balance wheel specification | Øxw(mm) | Ø180*76 | Ø180*76 | φ180*76 | |
Wheel tread:Front | b10(mm) | 1430 | 1430 | 1583 | |
size | Wheel tread:Rear | 703 | 703 | 703 | |
Mast height(fork lowering) | h1(mm) | 2110 | 2110 | 2996 | |
Free lift height | h2(mm) | 1500 | 1500 | 1980 | |
Max Lifting Height | h3(mm) | 4500 | 4500 | 6000 | |
Max.height | h4(mm) | 5480 | 5480 | 6965 | |
Overhead guard height | h14(mm) | 2280 | 2280 | 2280 | |
Fork height when gantry retracted | h 13( mm) | 35 | 40 | 45 | |
Mast/carriage tilt angle(front/rear) | 0 | 3/5 | 3/5 | 3/5 | |
Vehicle length | 11mm) | 2505 | 2585 | 2650 | |
Overall length | I2(mm) | 2046 | 2146 | 2295 | |
Overall width | b1(mm) | 1680 | 1680 | 1900 | |
Fork dimension | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 | |
Fork spread | b5(mm) | 210-705 | 260-705 | 270-840 | |
Front overhang | L(mm) | 655 | 700 | 720 | |
Min ground clearance | m2(mm) | 80 | 80 | 80 | |
Min.stacking.aisle.1000*1200pall | Ast(mm) | 2705 | 2785 | 3050 | |
performance | Turning radius | Wa(mm) | 1905 | 2000 | 2055 |
Max travel speed)(No load /Full | km/h | 8/7 | 8/7 | 8/7 | |
Lifting speed (No load /Full) | m/s | 0.250/0.240 | 0.240/0.220 | 0.240/0.220 | |
Lowered speed (No load /Full) | m/s | 0.240/0.250 | 0.240/0.260 | 0.240/0.260 | |
(Max.Grade ability No load /Full) | % | <10 | <10 | ≤10 | |
Brake form | Electromagnetic braking | ||||
motor | Driving motor | kw | 6.5 | 6.5 | 8 |
Lifting motor | kw | 8.6AC | 8.6AC | 12AC | |
Battery type | Lead acid battery | ||||
Battery capacity | V/Ah | 48/300 | 48/400 | 48V400Ah | |
Charger-Intelligent | V/A | 48/40 | 48/50 | 48V/50A | |
other | Drive control mode | AC | |||
Driver's ear noise level according to EN12053 | dB(A) | 75 | 75 | 75 | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
