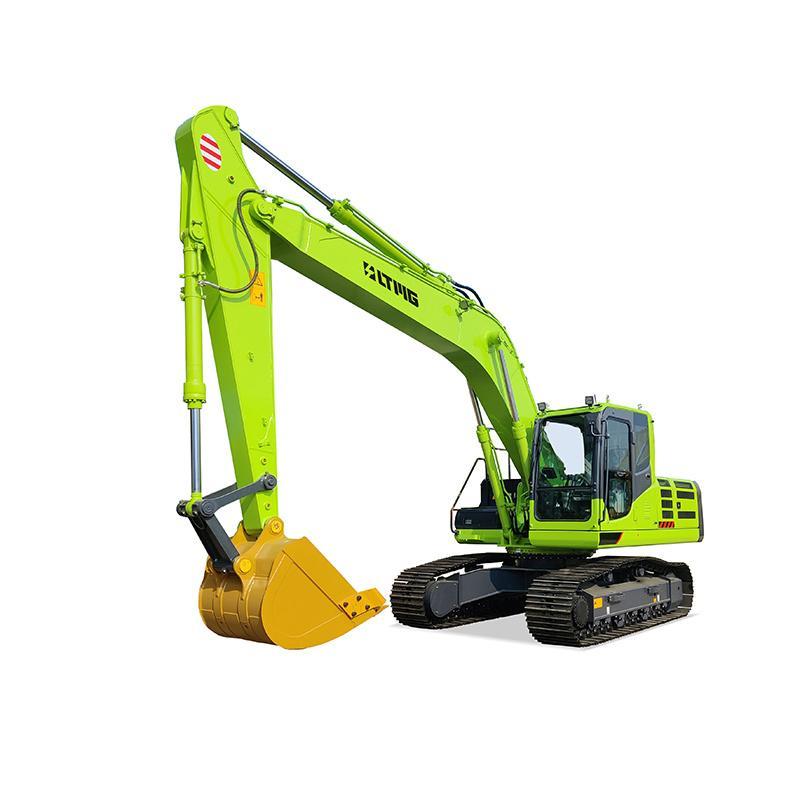

LTE210EV - 21 Ton Electric Excavator (Wired)

$0.00   $0.00
Sold By: LTMG

High Efficiency and Powerful: The power release speed of the electric motor is far higher than that of a fuel engine, fundamentally improving the work efficiency of the excavator; the electric excavator connected to three-phase power has a burst force comparable to that of conventional excavators.

Fewer Breakdowns: The maintenance cycle for the electric motor is around 5000 hours, and it can operate 24 hours a day. The 16 electric excavators deployed at the Hangzhou dock have already reached 30,000 hours without any faults. With electric power drive, under the same working conditions, the electricity cost is 33% to 44% lower than using fuel, and it can extend the service life of the machine and reduce maintenance costs.

Suitable for Various Working Conditions: Multiple wiring methods. Scrap yards mainly use overhead lines, with an activity range of about 50-100 meters.

Versatile Machine: It can be equipped with special configurations to perfectly solve construction challenges.

In stock
SKU: FM-2443-JVFA
Categories: Excavators
Fast Delivery
Fast Delivery
A large stock can be shiped quickly
One Stop Solution
One Stop Solution
Wholesale,Retail, Spare Parts
Stable Supply Chain
Stable Supply Chain
Directly sourced from auto factories
Hotline Order:

Mon - Fri: 09AM - 08PM

(+86) 13686469587

Become a Vendor? Register now

Specification



Specification

Unit

LTE210EV

Total weight

T

21

Bucket capacity

0.9-1.2

Motor model



YE3-250M-4

Rated power

Kw/r/min

55/1480

Rated voltage

V

380

Rated stored energy

KWh

/

Max displacement

L/min

210*2

Working pressure

Mpa

34.3

Hydraulic pump mode



APVO125

Hydraulic tank volume

L

230

Walking speed (high/low)

km/h

4.5/2.5

Swing speed

r/min

8.7

Climbing ability

°

35

Bucket excavation force

KN

147.9

Arm digging force

KN

107.3

Ground specific voltage

KPa

50.8

Traction force

KN

223

Max. excavation height

mm

9270

Max. unloading heigh

mm

6600

Max.excavation depth

mm

6525

Max. verticalarm mining depth

mm

5670

The distance when digging 2.5 horizontal plane

mm

6327

Max. excavation distance

mm

9820

Max. excavation distance on the ground

mm

9630

Min. turning radius

mm

3800

Max. height at minimum turning radius

mm

7640

Distance from the center of rotation to the rear end

mm

2800

Counterweight height

mm

2120

Grounding length during transportation

mm

4970

Overalllength

mm

9535

Overall width

mm

2780

Total heigh(boom top)

mm

3140

verall height(top ofcab)

mm

3090

Counterweight ground clearance

mm

1080

Min. ground clearance

mm

470

Tail turning radius

mm

2800

Track grounding length

mm

3260

Track length

mm

4070

Rail guage

mm

2180

Track width

mm

2780

Track shoe width

mm

600

Turntable width

mm

2700

rack tooth thickness

mm

26

Arm length

mm

2900

Boom length

mm

570

With technological innovation our product configuration and parameters will continue to change without notice;

 if there is any doubt the specific confirmation of our international trade sales shall prevail;
