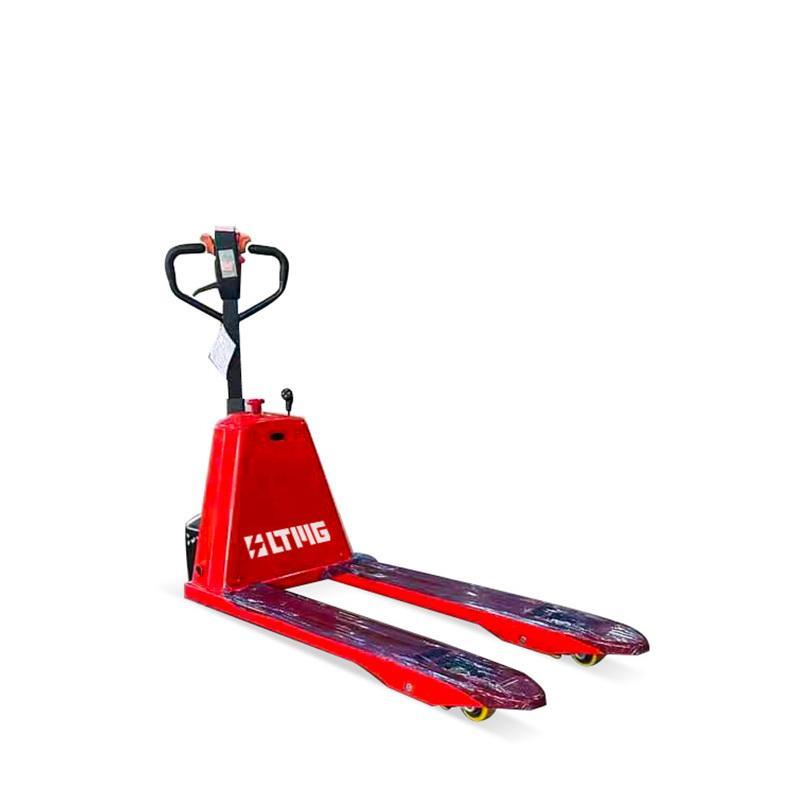

SFEP20 - 2 Ton Semi-Electric Pallet Truck
The entire vehicle is simple, agile, reliable, and easy to operate. It has a compact structure with a small turning radius. Its low weight allows it to be used inside containers. It offers low noise and high performance.
It features an electric brake function. When the handle is released or pressed to the bottom, the vehicle immediately brakes, cutting off power. This feature is particularly useful and provides greater safety and reliability when the vehicle is out of control or on a slope.
It comes standard with an emergency stop switch. When the vehicle is in a dangerous state, pressing the emergency stop switch can cut off the power supply, stopping the vehicle and protecting the operator's personal and equipment safety. It comes standard with a built-in charger for convenient charging.
The front panel is easy to remove, making battery replacement and maintenance simple and quick.
It has a reverse collision switch, and the driving brake uses dual protection of electromagnetic braking and motor braking, fully considering the safety of the operator during driving.
Hotline Order:
Mon - Fri: 09AM - 08PM
(+86) 13686469587
Specification
Characteristics | Model | SFEP20 | |
Power unit | Electric | ||
Operation | Pedestrian | ||
Rated traction weight | Q (t) | 2 | |
Load centre | c (mm) | 600 | |
Axle centre to fork face | x (mm) | 944 | |
Wheel base | y (mm) | 1243 | |
Weights | Service weight with battery | kg | 155 |
Wheels/Tyres | Wheels type | PU | |
Driving wheel size | Φ×w(mm) | Φ210×70 | |
Bearing wheel size | Φ×w(mm) | Φ80×60 | |
Wheels, number front/rear (x = driven) | 1x/4 | ||
Track width | b11 (mm) | 400/535 | |
Dimensions | Lift | h3 (mm) | 200 |
Overall height(With handle | h14 (mm) | 720/1090 | |
lowered hength | h13 (mm) | 85 | |
Overall length | l1 (mm) | 1620 | |
Length to fork face | l2 (mm) | 470 | |
Overall width | b1/ b2 (mm) | 550/685 | |
Fork dimensions | s/e/l (mm) | 50/150/1150 | |
Width of forks | b5 (mm) | 550/685 | |
Min.Ground clearance | m2 (mm) | 35 | |
Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 1825 | |
Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 1875 | |
Min.Turning radius | Wa (mm) | 1415 | |
Performance | Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
Maximum climbing ability, with/without load | (%) | 3/10 | |
Service brake | Electromagnetic | ||
Drive | Drive motor, 60 minute rating | (kW) | / |
Lift motor rating at S3 15% | (kW) | / | |
Battery according to DIN 43531/35/36 A,B,C,no | / | ||
Battery voltage/rated capacity | (V/Ah) | 2*12/32 | |
Battery weight (± 5%) | (kg) | 10.1*2 | |
Others | Type of drive control | DC | |
Noise level at operator‘s ear | (dB(A)) | ≤70 | |
Diversionary Mode | Mechanica |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
